Anatomy Atlases: Illustrated Encyclopedia of Human Anatomic Variation: Opus II: Cardiovascular System: Arteries of the Foot.

Illustrated Encyclopedia of Human Anatomic Variation: Opus II: Cardiovascular System

Arteries of the Foot.

Ronald A. Bergman, PhD
Adel K. Afifi, MD, MS
Ryosuke Miyauchi, MD

Peer Review Status: Internally Peer Reviewed

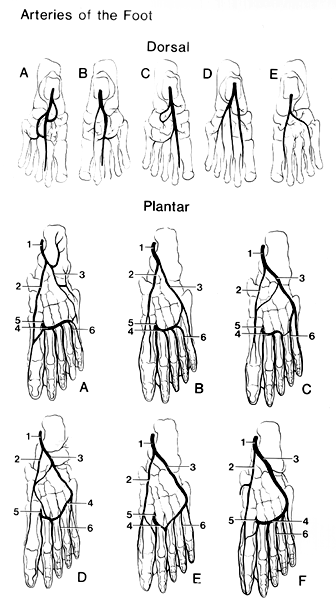

Image of arteries of the foot

Various arterial patterns on dorsum of foot (Meyer).

Variations in the planter arch (Dubreuil-Chambardel). A-E (upper row): variations in the branching pattern of the tibial artery on the dorsum of the foot. A-F (middle and lower rows): variations in the planter arch. 1= posterior tibial artery, 2= medial planter artery, 3= lateral planter artery, 4= deep planter arch arising from 3, 5= deep planter artery.
after Meyer, H. in Kopsch, Rauber's Lehrbuch und Atlas der Anatomie des Menschen. Georg Thieme, Leipzig, 1908 and after Dubreuil-Chambardel, L. in Latarjet, A. Testut's Traité d'Anatomie Humaine, 8th Ed., G. Doin & Cie., Paris, 1929.
