Anatomy Atlases: Illustrated Encyclopedia of Human Anatomic Variation: Opus II: Cardiovascular System: Hepatic Pedicle: Variations in Arteries and Bile Ducts.

Illustrated Encyclopedia of Human Anatomic Variation: Opus II: Cardiovascular System

Hepatic Pedicle: Variations in Arteries and Bile Ducts.

Ronald A. Bergman, PhD
Adel K. Afifi, MD, MS
Ryosuke Miyauchi, MD

Peer Review Status: Internally Peer Reviewed


Image of hepatic pedicle

The arrangement of the vessels and ducts given as normal constitute only 69 cases of the 200 studied (34.5%) by Flint (A). "So frequent are variations that it is impossible to regard any one type as normal; the arrangement found in the 69 cases can only be described as the most usual one."

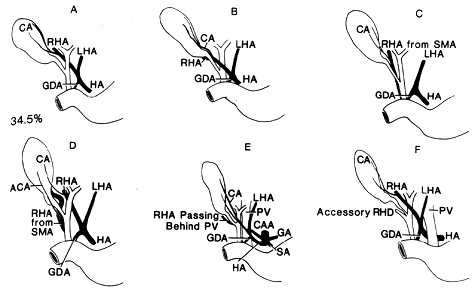

ACA, Accessory cystic artery; CA, cystic artery; CAA, celiac trunk; CD, cystic duct; GA, gastric artery; GDA, gastroduodenal artery; HA, hepatic artery; LHA, left hepatic artery; PV, portal vein; RHA, right hepatic artery; RHD, right hepatic duct; SA, splenic artery; SMA, superior mesenteric artery; SPDA, superior pancreatoduodenal artery.

Right Hepatic Artery
This artery arose from the common hepatic in 158 cases, and reached the liver by passing behind the common hepatic duct in 136 cases (A), and ih front of the duct in 22 cases (B). In 42 cases the right hepatic artery arose from the superior mesenteric (C), and always passed behind the common duct. In 7 cases there were two right hepatic arteries, one from the hepatic trunk and one from the superior mesenteric artery (D). In 2 cases there were two right hepatic arteries both from the common hepatic, one passed in front of, and the other behind, the common hepatic duct.

In 4 cases, in addition to passing behind the ducts, the common hepatic or the right hepatic artery also passed behind the portal vein (E and W).

Authors' note: The right hepatic artery may also arise from the aorta, right renal, gastric, or inferior mesenteric artery. No such cases were found in Flint's series.

Cystic Artery
The cystic artery arose from the right hepatic artery in 196 of the 200 cases; in 3 cases from the left hepatic (I and Y), and in 1 case from the gastroduodenal artery (H).

In 32 cases it passed in front of ihe common hepatic duct (E and G), and in 168 it arose from the right side of the common hepatic duct (A) or behind it (A'), the former being the more common.

Accessory Cystic Artery
In 31 cases there was an accessory cystic artery and in 169 cases a single cystic. The accessory cystic artery arose from the right hepatic in 16 (D, J, and K), from the left hepatic in 3 (L and Y), from the gastroduodional in 11 (M), and from the superior pancreatoduodenal in 1 case (N) out of the 200.

Left Hepatic Artery (100 cases studied)
In 32 cases there were two left hepatic arteries with one coming from the common hepatic and the other from the gastric, and in 1 case the left lobe of the liver received its arterial supply from the gastric only.

Bile Ducts
According to Flint, the most common point at which union actually occurs is within 1 cm of the upper border of the duodenum (H). In 28 cases there were no supraduodenal common bile ducts at all (T), the union taking place at a point anywhere from behind the upper border of the duodenum to the part embedded in the pancreas, and in 3 cases the only representative of the common duct was the part that lies in the wall of the duodenum (U).

Accessory Bile Ducts
Flint reported 29 examples of accessory right hepatic ducts (F, X, Y, A', and C').

Redrawn from Flint, E.F. Abnormalities of the right hepatic, cystic, and gastroduodenal arteries, and of the bile ducts. Br. J. Surg. 10:509-519, 1923-24.
