Anatomy Atlases: Illustrated Encyclopedia of Human Anatomic Variation: Opus II: Cardiovascular System: Hepatic Pedicle: Variations in Arteries and Bile Ducts, continued.

Illustrated Encyclopedia of Human Anatomic Variation: Opus II: Cardiovascular System

Hepatic Pedicle: Variations in Arteries and Bile Ducts, continued.

Ronald A. Bergman, PhD
Adel K. Afifi, MD, MS
Ryosuke Miyauchi, MD

Peer Review Status: Internally Peer Reviewed

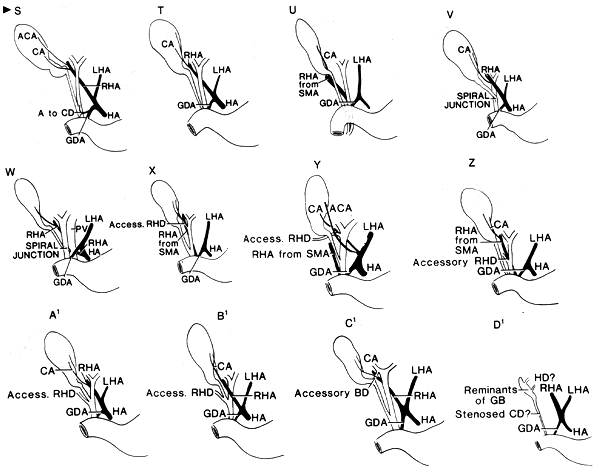

Image of hepatic pedicle

ACA, Accessory cystic artery; CA, cystic artery; CAA, celiac trunk; CD, cystic duct; GA, gastric artery; GDA, gastroduodenal artery; HA, hepatic artery; LHA, left hepatic artery; PV, portal vein; RHA, right hepatic artery; RHD, right hepatic duct; SA, splenic artery; SMA, superior mesenteric artery; SPDA, superior pancreatocluodenal artery.

Redrawn from Flint, E.F. Abnormalities of the right hepatic, cystic, and gastrocluodenal arteries, and of the bile ducts. Br. J. Surg. 10:509-519, 1923-24.
