Plate 6.113 Nerve Fibers

Ronald A. Bergman, Ph.D., Adel K. Afifi, M.D., Paul M. Heidger, Jr., Ph.D.
Peer Review Status: Externally Peer Reviewed


NERVE FIBERS
White matter, Spinal cord cross section

Plate 6.113 Nerve Fibers

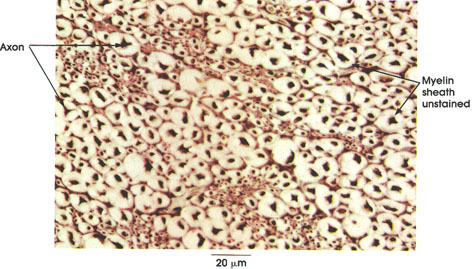

Rhesus monkey, 10% formalin, Bodian silver, 612 x.

Axon: Shrunken axis cylinder appears black because of silver impregnation. Note the variation in axon diameter. The diameter of a nerve fiber is directly related to the speed of nerve impulse transmission; larger fibers carry electrical impulses faster than smaller fibers.

Myelin sheath: Unstained by this method. it surrounds the axis cylinder. Compare with Plate 115.
