Anatomy Atlases: Atlas of Human Anatomy: Plate 1: Figure 3

Atlas of Human Anatomy

The inner wall of the bones of the orbit, and the pterygopalatine fossa and their surroundings.

Translated by: Ronald A. Bergman, PhD and Adel K. Afifi, MD, MS
Peer Review Status: Internally Peer Reviewed


Magnified View (via QuickTime VR)

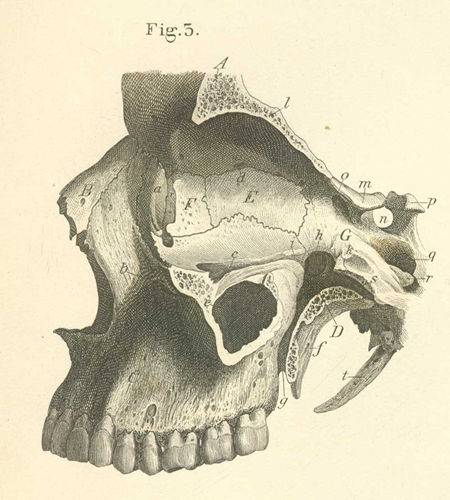

The inner wall of the bones of the orbit

A. Frontal bone.
B. Nasal bone
C. Maxillary bone.
D. Palatine bone (perpendicular part; pterygopalatine fossa).
E. Ethmoidal bone (lamina papyracea).
F. Lacrymal bone.
G. Sphenoid bone.

a) Fossa for lacrymal sac.
b) Infraorbital foramen.
c) Ethmoidal foramen.
e) Maxillary sinus (antrum of Highmore).
f) Pterygoid process.
g) Pterygopalatine canal.
h) Pterygopalatine foramen.
i) Orbital process, palatine bone.
k) Sphenoid process, palatine bone.
l) Orbital part of the frontal bone.
m) Anterior clinoid process.
n) Sella turcica.
o) Optic foramen.
p) Posterior clinoid process.
q) Carotid canal.
r) Lingula.
s) Pterygoid canal (Vidian canal).
t) Styloid process.
