Anatomy Atlases: Atlas of Human Anatomy: Plate 1: Figure 4

Atlas of Human Anatomy

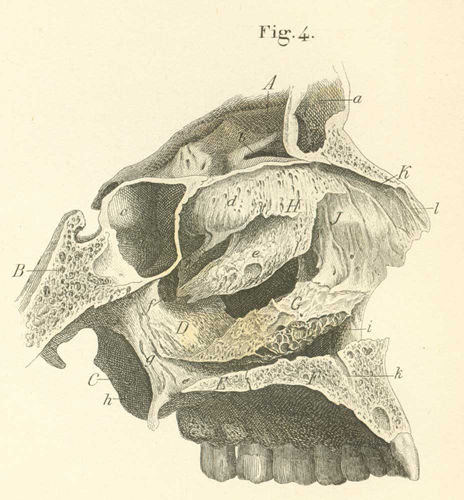

The external wall of the (left) nasal bones with their muscles.

Translated by: Ronald A. Bergman, PhD and Adel K. Afifi, MD, MS
Peer Review Status: Internally Peer Reviewed


Magnified View (via Quicktime VR)

The external wall of the (left) nasal bones with their muscles

A) Frontal bone, frontal part.
B) Sphenoid bone, body.
C) Pterygoid process of the sphenoid bone.
D) Palatine bone, perpendicular part.
E) Palatine bone, horizontal part.
F) Maxillary bone, palatine process.
G) Inferior concha, inferior turbinate bone.
H) Nasal lamina, ethmoid labyrinth.
I) Frontal process (nasalis of the maxillary bone).
K) Nasal bone.

a) Frontal sinus.
b) Ethmoidal sinus.
c) Sphenoidal sinus.
d) Superior concha, highest turbinate bone.
e) Middle concha, middle turbinate bone.
f) Pterygopalatine foramen, in the perpendicular part of the palatine bone.
g) Pterygoid process, medial wing.
h) Pterygoid process, lateral wing.
i) Lacrymal canal, exit.
k) Incisive canal (for the passage of the nasopalatine artey, vein, and nerve).
l) Sulcus for the external nasal branch of the anterior ethmoid nerve.
