Anatomy Atlases: Atlas of Human Anatomy: Plate 17*: Figure 6

Atlas of Human Anatomy

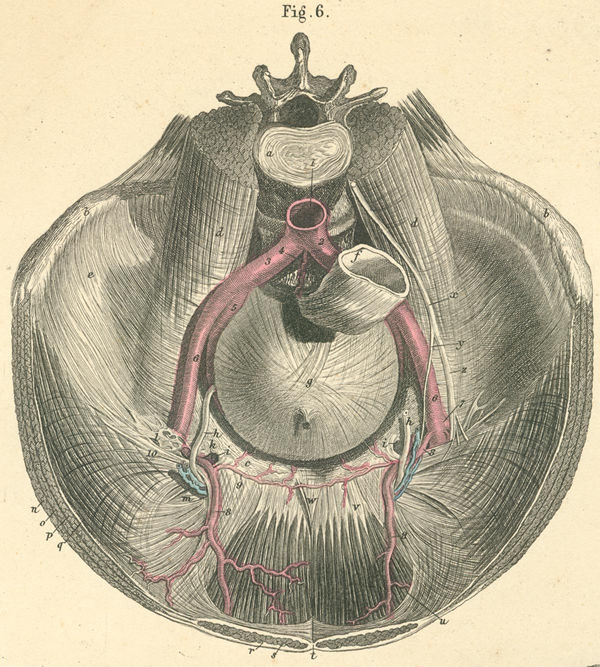

True pelvis showing the course of the external iliac artery and the relationship between the vas deferens and the inferior epigastric artery.

Translated by: Ronald A. Bergman, PhD and Adel K. Afifi, MD, MS
Peer Review Status: Internally Peer Reviewed


Magnified View (via Quicktime VR)

True pelvis

a) Vertebral disk between the 3rd and 4th lumbar vertebrae.
b) Iliac crest.
c) True pelvis, anterior rim.
d) m. Psoas (divided).
e) m. Internal iliac.
f) Rectum.
g) Urinary bladder.
h) Vas deferens.
i) Lacunar ligament (Gimbernati ligament).
k) Superior opening of femoral canal.
l) Multiple continuations of iliac fascia, which covers the blood vessels entering the thigh.
m) Deep inguinal ring (s. internal inguinal anulus).
n) m. External abdominal oblique (cut across).
o) m. Internal abdominal oblique (cut across).
p) m. Transversus abdominis (cut across).
q) Transversalis fascia.
r) Sheath of m. Rectus abdominis.
s) m. Rectus abdominis.
t) Linea alba.
u) Arcuate line (at the end of the sheath of the rectus abdominis muscle, s. semicircular line of Douglass).
v) m. Rectus abdominis (the part that is not covered by fascia at its distal end).
w) Adminiaculum linea albae.
x) Genitofemoral nerve.
y) Genital branch of the genitofemoral nerve.
z) Femoral branch of the genitofemoral nerve.

  1. abdominal aorta.
  2. left common iliac artery.
  3. right common iliac artery.
  4. middle sacral artery.
  5. internal iliac artery (s. hypogastric artery).
  6. external iliac artery.
  7. circumflex iliac artery.
  8. inferior epigastric artery (crossing the vas deferens).
  9. pubic anastomotic branch of inferior epigastric artery.
  10. Testicular artery forming the pampiniform plexus.
