Anatomy Atlases: Atlas of Human Anatomy: Plate 21: Figure 6

Atlas of Human Anatomy

Deep arteries of the sole of the right foot.

Translated by: Ronald A. Bergman, PhD and Adel K. Afifi, MD, MS
Peer Review Status: Internally Peer Reviewed


Magnified View (via Quicktime VR)

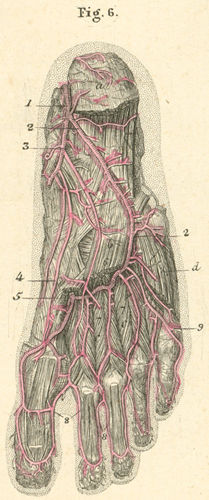

Deep arteries of the sole of the right foot

a) Calcaneal tuberosity.
b) m. Adductor hallucis.
c) mm. Plantar pedis interossei.
d) m. Flexor brevis digiti V (s. digiti quinti).

  1. tibialis posterior artery.
  2. lateral plantar artery.
  3. medial plantar artery.
  4. medial plantar artery of great toe.
  5. penetration of deep plantar rami of dorsalis pedis artery.
  6. deep plantar arch.
  7. plantar interosseous arteries.
  8. digital pedis plantar arteries.
  9. lateral plantar digiti V artery.
