Anatomy Atlases: Atlas of Human Anatomy: Plate 23: Figure 8

Atlas of Human Anatomy

The long fiber path of the medulla oblongata, which course from the cerebellum, corpora quadrigemina to the pons.

Translated by: Ronald A. Bergman, PhD and Adel K. Afifi, MD, MS
Peer Review Status: Internally Peer Reviewed


Magnified View (via Quicktime VR)

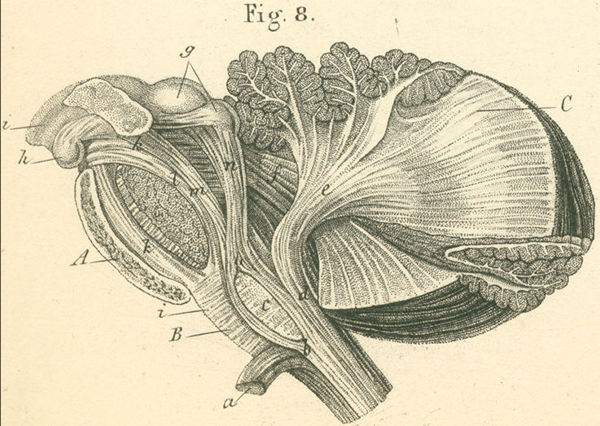

The long fiber path of the medulla oblongata

A. Pons Varoli.
B. Medulla oblongata.
C. Cerebellum (left hemisphere).

a) Left pyramid (cut across).
b) Left olivary fascicle.
c) Inferior olivary, Nucleus.
d) Left restiform body (inferior cerebellar peduncle).
e) Inferior cerebellar peduncles.
f) Brachium conjunctivum (superior cerebellar peduncle).
g) Corpora quadrigemina.
h) Corpora mammillare (mamillary bodies).
i) Horizontal fibers of the right pyramid.
k) Lateral lemniscus.
l) Medial lemniscus.
m) Medial lemniscus.
n) Amiculum olivae.
o) Cerebral peduncles.
p) Fibers of cerebral peduncles.
