Anatomy Atlases: Atlas of Human Anatomy: Plate 31: Figure 4

Atlas of Human Anatomy

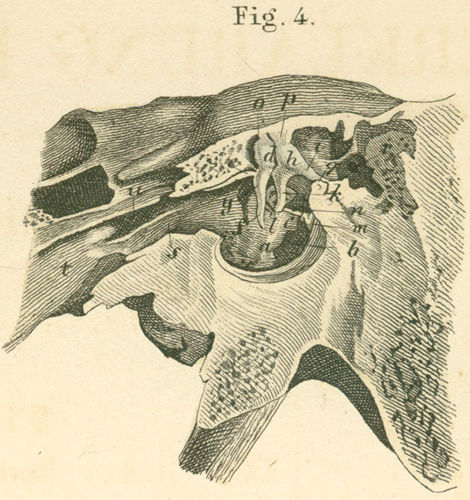

The left tympanic cavity, (after removal of the inner wall of the tympanic membrane), with auditory ossicles.

Translated by: Ronald A. Bergman, PhD and Adel K. Afifi, MD, MS
Peer Review Status: Internally Peer Reviewed


Magnified View (via Quicktime VR)

The left tympanic cavity with auditory ossicles.

a) Inner wall of tympanic membrane.
b) Round window.
c) Promontorium.
d) Head of malleus.
e) Malleus, long (anterior) process (s. processus gracilis vel [or] Folianus).
f) Manubrium mallei.
g) Malleus, short (lateral) process (s. processus brevis vel obtusus).
h) Incus, body (s. incudis).
i) Short limb of incus (s. processus brevis incudis).
k) Long limb of incus(s. processus longus incudis).
l) Stapes (with basis [footplate]in oval window).
m) Pyramidal eminence (s. eminentia papillaris).
n) Tendon of stapedius.
o) Ligamentum capituli mallei (s. superius).
p) Ligamentum incudis superius.
q) Ligamentum incudis posterior (s. processus brevis incudis).
r) Entrance to mastoid air cell.
s) Auditory (Eustachian) tube, bony portion.
t) Auditory (Eustachian) tube, cartilaginous portion.
u) Semicanal for m. tensor tympani.
