Anatomy Atlases: Atlas of Human Anatomy: Plate 31: Figure 20

Atlas of Human Anatomy

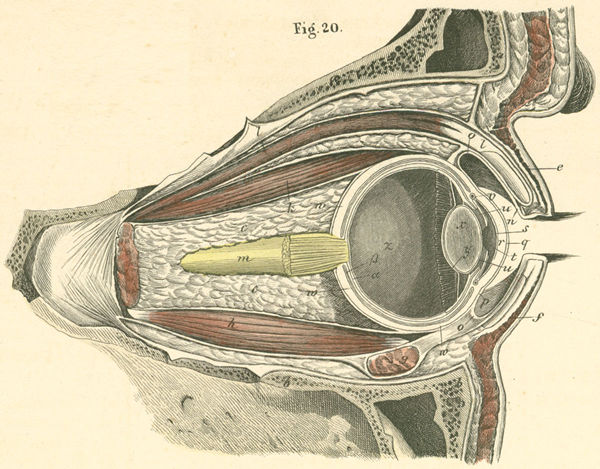

The right ocular bulb in the orbit, cut through the middle, opened from the lateral side.

Translated by: Ronald A. Bergman, PhD and Adel K. Afifi, MD, MS
Peer Review Status: Internally Peer Reviewed


Magnified View (via Quicktime VR)

The right ocular bulb in the orbit

a) Frontal bone.
b) Maxillary bone.
c) Fat in orbit.
d) m. Frontal.
e) Superior eyelid.
f) Inferior eyelid.
g) m. Inferior oblique oculi.
h) m. Inferior rectus oculi.
i) m. Lateral rectus oculi.
k) m. Superior rectus oculi.
l) m. Levator palpebral superioris.
m) Optic nerve.
n) Conjunctiva of eyelid.
o) Transition of eyelid and skin in the
p) sclera conjunctiva (ocular bulb).
q) Corneal conjunctiva.
r) Cornea.
s) Decemet’s membrane (lamina limitans posterior cornea).
t) Anterior ocular cavity, with aqueous humor.
u) Posterior ocular cavity, with aqueous humor.
v) Iridial sinus venosus.
w) Sclera, tunica.
x) Crystalline lens (capsule and Petit’s canal).
y) Ciliary body.
z) Vitreous body.

a) Retina, tunica.
b) Choroid, tunica.
