Anatomy Atlases: Atlas of Human Anatomy: Plate 32: Figure 9

Atlas of Human Anatomy

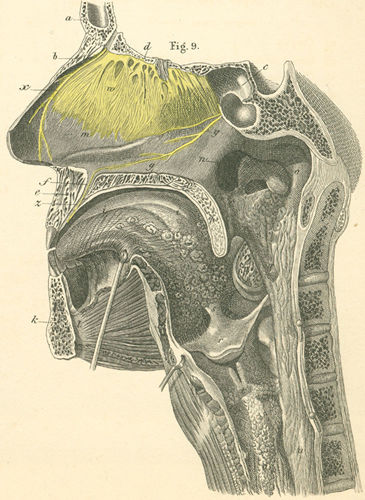

Right half of the nose, with nasal septum, the mouth with tongue, pharynx with the epiglottis closing the larynx.

Translated by: Ronald A. Bergman, PhD and Adel K. Afifi, MD, MS
Peer Review Status: Internally Peer Reviewed


Magnified View (via Quicktime VR)

Right half of the nose

a) Frontal bone, frontal sinus.
b) Nasal bone.
c) Sphenoidal sinus.
d) Lamina Cribrosa of ethmoid bone.
e) Maxillary bone.
f) Incisive canal.
g) Hard palate.
h) Soft palate (s. velum palatinum).
i) Tongue.
k) Mandible.
l) m. Genioglossus.
m) Nasal septum.
n) Nasal opening.
o) Pharynx.
p) Tonsil.
q) Pharyngeopalatine arch.
r) Epiglottis.
s) Frenulum epiglottidis (s. Middle glossoepiglotticum ligament).
t) Posterior wall of larynx.
u) Esophagus.
v) Trachea.
w) Olfactory nerve.
x) Ethmoidal nerve (s. nasalis anterior nerve).
y) Nasopalatine nerve (Scarpa’s nerve).
z) Incisive canal and nerve.
